Zirconia vs silicon nitride, which one is more suitable for permanent sealing scenarios?

2026-05-19

In industries such as precision equipment, high vacuum systems, semiconductor equipment, medical equipment, and new energy, "permanent sealing" is not only a structural design issue, but also a comprehensive test of material stability, thermal stress control, and long-term reliability.

Many engineers will repeatedly weigh between zirconium oxide (ZrO₂) and silicon nitride (Si₃N₄) when selecting materials. Zirconia has high toughness and stable coordination; silicon nitride has high strength and excellent thermal shock resistance. But what really determines "who is more suitable for permanent sealing" is not a single parameter, but the matching logic between materials and working conditions.

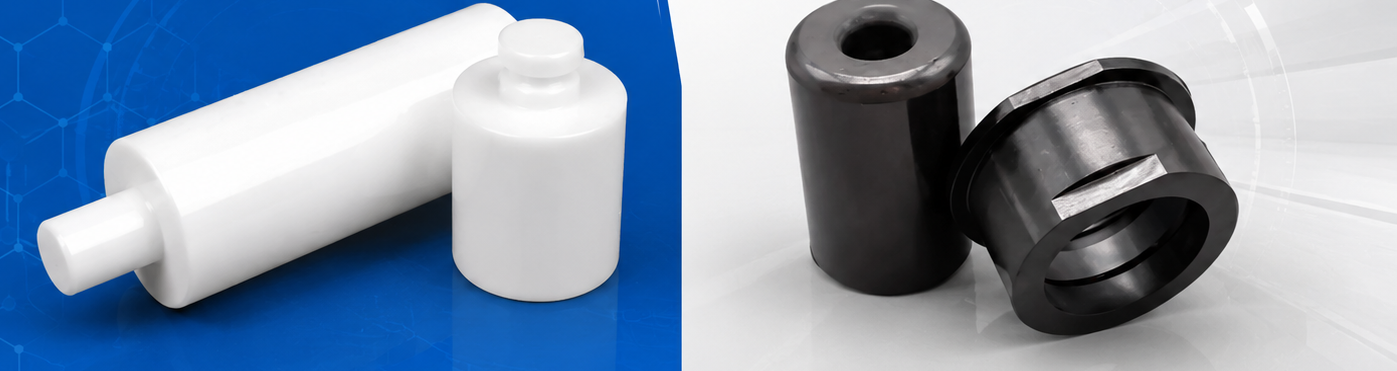

Zirconia ceramic sealed shaft core silicon nitride seal

What is "permanent sealing"?

A truly permanent seal requires materials that simultaneously meet the following requirements during long-term operation: stable air tightness, no cracking during thermal cycles, no dimensional drift and metal connection failure over a long period of time, resistance to corrosion and media erosion, and structural stability under high pressure or vacuum. Therefore, sealing materials often have to face high-frequency hot and cold cycles, long-term mechanical stress, vacuum environment, corrosive media, and micron-level coordination requirements. And this is where ceramic materials really make a difference.

Why is zirconia often used in sealing structures?

The biggest advantage of zirconia is not that it is “hard”; High toughness . Zirconia is one of the current engineering ceramics with the highest fracture toughness. Compared with traditional brittle ceramics, it is less prone to sudden cracking when subjected to local stress, assembly deviations or differences in thermal expansion.

This means that it is more suitable for complex matching structures, more suitable for metal-ceramic combination seals, and more suitable for systems with assembly preload. At the same time, the thermal expansion coefficient of zirconia is higher, closer to that of stainless steel and alloy steel, which can effectively reduce brazing stress and the risk of thermal cycle cracking.

Therefore in Metal sealing, brazing sealing, medical sealing components, vacuum chamber Among them, zirconia tends to be more stable over the long term.

Why do many high-end devices choose silicon nitride?

Because permanent sealing is not only about “not cracking”; High temperature stability, thermal shock capability, long-term structural strength , and this is precisely the advantage of silicon nitride.

Core advantages of silicon nitride

Silicon nitride has Very low thermal expansion with Extremely high thermal conductivity . This means that when the device experiences rapid heating or sudden cooling, huge thermal stress is less likely to form within the material. Therefore, it performs extremely stably in semiconductor equipment, high-temperature vacuum systems, plasma equipment, and aviation sealing structures. In addition, silicon nitride is high temperature It can still maintain high mechanical properties under working conditions and is very suitable for long-term high-temperature sealing, high-pressure gas systems, and high-frequency thermal cycle structures.

Silicon nitride is not necessarily suitable for all permanent seals

The problem lies precisely in "too hard and too stable". Although silicon nitride has strong performance, it is significantly more difficult to process and assemble. For example, the processing cost is high, precision grinding is difficult, the expansion difference with the metal is large, and the brazing process window is narrower. Once the structural design is unreasonable, stress will easily accumulate at the interface after thermal cycling.

How to choose between the two materials?

More suitable to choose Zirconia Scenario:

scene	Typical applications
Assembly stress is more complex	Medical seals
Pay more attention to airtight stability	Precision valve body
Requires long-term cooperation with metal	Vacuum connection structure
Small and precise structure	Electronic packaging
High requirements for processing consistency	Sensor seal

More suitable to choose silicon nitride Scenario:

scene	Typical applications
Frequent thermal shock	Semiconductor equipment
drastic temperature changes	Aerospace seals
Long term high temperature operation	high temperature轴承系统
Extreme working environment	plasma equipment
Requires ultra-high mechanical strength	New energy high temperature structural parts

What really determines the seal life is not the material itself. Many seals fail not because the material is “not good enough”; Thermal expansion mismatch, fit tolerance error, structural stress concentration, unreasonable brazing process, and substandard surface roughness . Ceramic materials are just the foundation. What truly determines the life of the permanent seal is the comprehensive result of material performance, structural design, process control and working condition matching.

Conclusion

There is no absolute "who is more advanced" between zirconium oxide and silicon nitride. They represent two completely different engineering logics:

Zirconia强调“稳定配合”

silicon nitride强调“极端性能”

For permanent sealing, if the core issue is "long-term reliable connection", zirconia tends to be more stable; if the core issue is "extreme environmental survivability", silicon nitride is usually stronger. A truly excellent sealing design is never about choosing the most expensive material, but about choosing the material that is most suitable for the working conditions.
