The “hard core” guardian of medical technology | Key applications and material breakthroughs of advanced precision ceramics in medical devices

2026-04-03

Content

1. Excellent biocompatibility and notification
2. Extreme wear and ultra-long wear
3. Precise physical properties
1. Cultured ceramics – a classic choice for orthopedics and dentistry
2.Zirconium oxide ceramic-the king of tension
3. Zirconia toughening – the cutting edge of composite materials
1. Artificial joint replacement (artificial hip and knee joints)
2. Precision dental restoration
3. Minimally invasive surgical instruments
4. Imaging diagnostic equipment components

In the process of modern medicine moving from "major invasive" to "minimally invasive" and from "treatment" to "replacement", materials science has always been the high-end driving force. When traditional metal materials encounter difficulties in biocompatibility, fatigue resistance or electromagnetic interference, advanced precision ceramics are becoming the "hard core" core of high-end medical devices with their excellent physical and chemical properties.

From artificial joints that support the weight of the human body to interventional micro-components that penetrate deep into blood vessels, precision ceramics are reaching micron-level processing accuracy and near-perfect biology, which must redefine the quality of life.

1. Performance basis. Why are precision ceramics an ideal choice for medical grade?

Medical-grade ceramics belong to the globalization of bioceramics, and their application logic is based on the extremely fertile "bioenvironmental fertility".

1. Excellent biocompatibility and notification

Medical ceramics (such as high purity, zirconia) have extremely high chemical stability, do not degrade or release toxic ions in the complex body fluid environment of the human body, and can effectively avoid common allergies or tissue allergic reactions to metal materials.

2. Extreme wear and ultra-long wear

Artificial joints need to withstand tens of millions of frictions in the human body. The wear rate of precision ceramic head diamond is 2-3 orders of magnitude lower than that of traditional metal-polyethylene, which greatly extends the life of the inlet.

3. Precise physical properties

Electrical insulation: In the environment of high-frequency electrosurgery and focused imaging (MRI), the insulation and non-uniformity of ceramics ensure the safety of the equipment and imaging accuracy.

High structural and mechanical strength: Supports minimally invasive instruments that maintain high rigidity despite extremely thin dimensions.

2. Three core materials, performance comparison and technical analysis.

1. Cultured ceramics – a classic choice for orthopedics and dentistry

High purity (purity > 99.7%) is the earliest bioceramic used. It has extremely high surface power and excellent lubrication properties.

Technical indicators: The hardness coefficient is above 1800 HV and the hardness coefficient is extremely low.

Application: Although high in strength, it is also brittle and presents a risk of shattering when subjected to high impact loads.

2.Zirconium oxide ceramic-the king of tension

Through the yttrium stabilization or crystal stabilization process, zirconia has a unique "phase change toughening" mechanism. When a crack initiates, the crystal structure undergoes a phase change to produce volume expansion, thereby "squeezing" the crack, resulting in extremely high fracture strength.

Advantages: With a hardness similar to metal and a color close to natural teeth, it is the first choice material for dental all-ceramic crowns and bases.

3. Zirconia toughening – the cutting edge of composite materials

ZTA combines extremely high stress with the high toughness of zirconia and is the fourth generation ceramic material currently used as the backbone of artificial joints. It greatly reduces the fracture rate while maintaining an extremely low wear rate, and is known as the "superalloy among ceramics."

3. In-depth application, from orthopedic entrance to high-end diagnosis and treatment equipment.

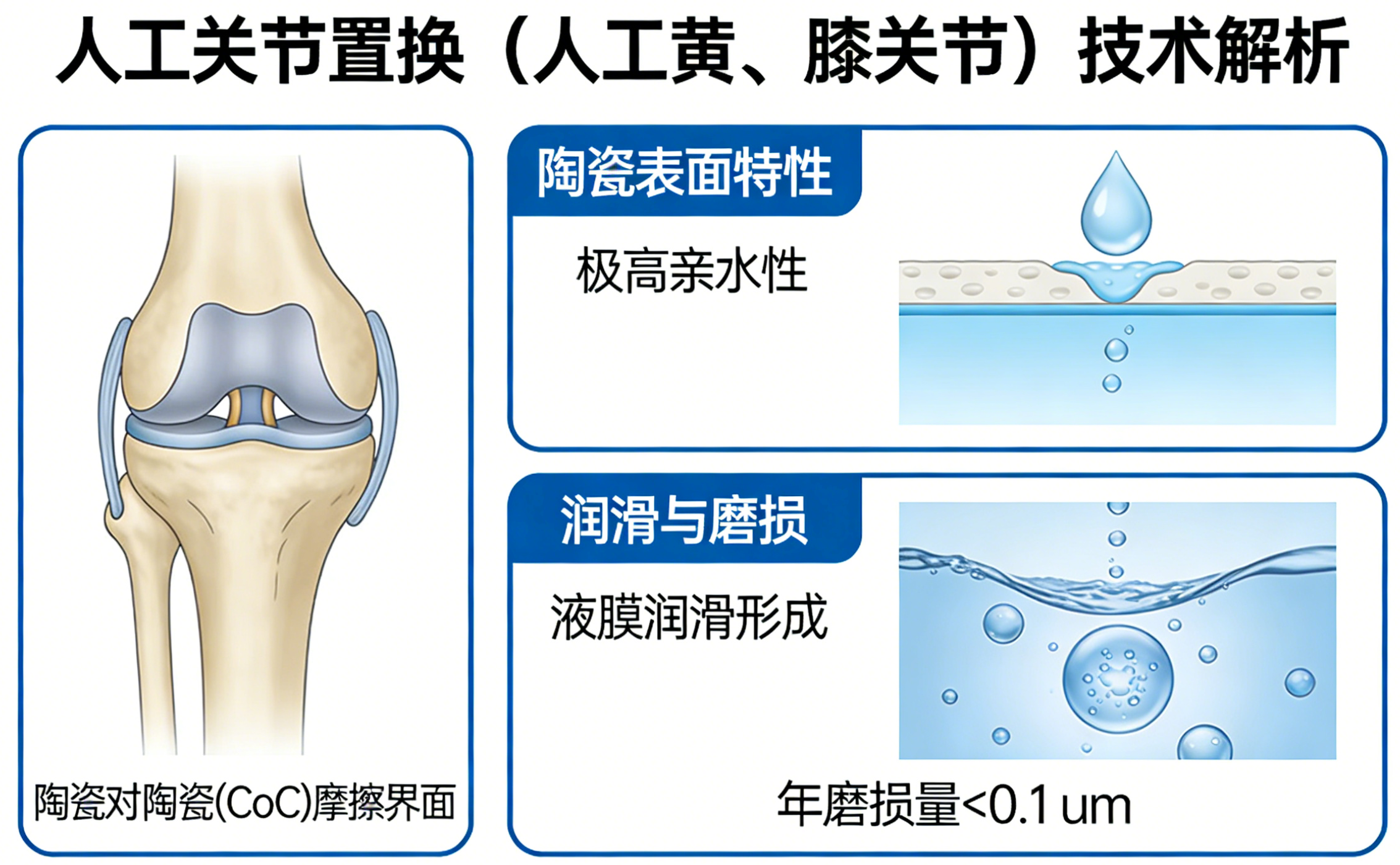

1. Artificial joint replacement (artificial hip and knee joints)

Ceramic-on-ceramic (CoC) friction interface is currently recognized as the best solution. Due to the extremely high hydrophilicity of the ceramic surface, liquid film lubrication can be formed between joints, and its annual wear volume is usually less than 0.1 micron , extending the life expectancy of imported objects from 15 years to more than 30 years.

2. Precision dental restoration

In addition to aesthetics, precision ceramics are the key to dentistry Dimensional accuracy Through the CAD/CAM linkage five-axis machining center, ceramic restorations can achieve micron-level fit, effectively preventing secondary repair of teeth caused by edge microleakage.

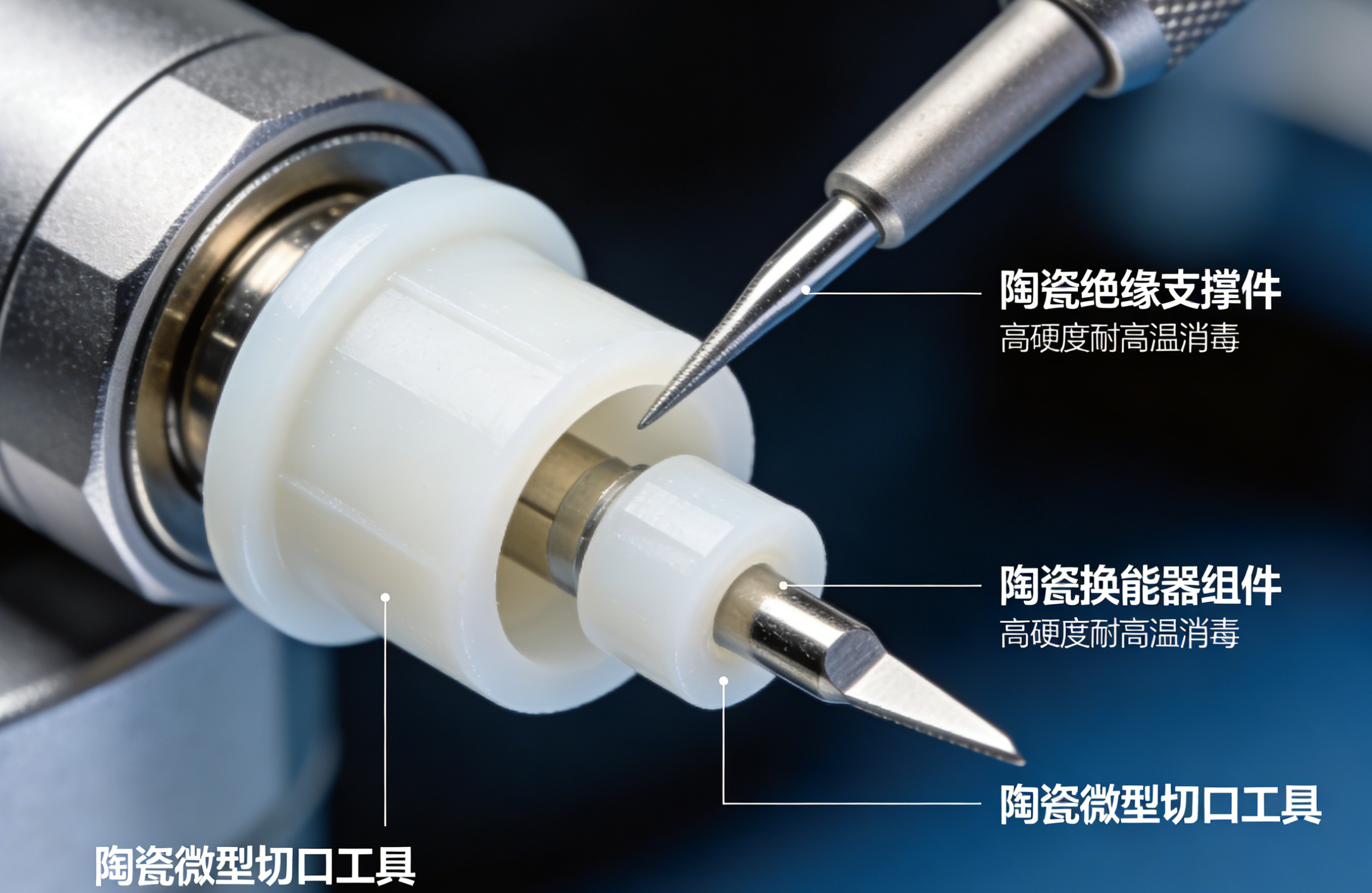

3. Minimally invasive surgical instruments

In built-in speculum, ultrasonic osteotome, and micro-sensors, the ceramic part carries the insulating support or transducer assembly. Its high hardness allows for the creation of precisely sharp and manufactured micro-moulds, without losing hardness in high-temperature sterilization like metal tools.

4. Imaging diagnostic equipment components

The high-pressure vacuum tube bearings of the CT machine and the heterogeneous structural parts in the MRI enhancement chamber all rely on the electromagnetic transparency and high strength of advanced ceramics to ensure that no eddy currents are generated in high-intensity electromagnetic environments and that significant image gradients are ensured.

4. How to achieve “medical grade” quality in the production process?

The production process of medical ceramics is typical of high barriers and high investment:

Powder ratio: It is necessary to achieve nanometer-level uniformity and conduct fine control at the ppm level to ensure the consistency of the material.

Near net shape: Dry pressing, isostatic pressing (CIP) or injection molding (CIM) are used to ensure the precision of blank storage through precision molds.

High temperature rotation: in 1400^C - 1600^C Densification is achieved by undergoing a brief period of time in a vacuum or atmosphere furnace.

Super finishing: Use diamond grinding heads for micron-level grinding and polishing to ensure surface roughness Ra < 0.02 um.

5. Future Trends: Customization and Customization

3D printed bioceramics, For complex bone defects in patients with bone tumors, 3D printing of personalized geometric structures and bionic pores is used to induce bone tissue ingrowth.

Functional compound, Develop ceramic materials with coating functions and drug sustained release functions.

Domestic replacement, With breakthroughs in domestic bioceramic powder technology and precision processing capabilities, the high-end medical ceramics market, which has long been monopolized by foreign countries, is ushering in a window period for localization.

Conclusion: Technology escorts, ingenuity carries destiny

Every evolution of medical devices is essentially a breakthrough in materials science. The perfect physical properties and biological performance of advanced precision ceramics are becoming a key cornerstone for improving human lifespan and quality of life.

As a professional team deeply involved in the field of advanced ceramics, we provide Customized R&D and processing services for high-purity solar energy, zirconia, ZTA and other medical-grade ceramic components , meeting ISO 13485 and strict industry standards.
