Practical application explanation of special-shaped zirconia ceramic blades

2026-05-14

1. Product Overview

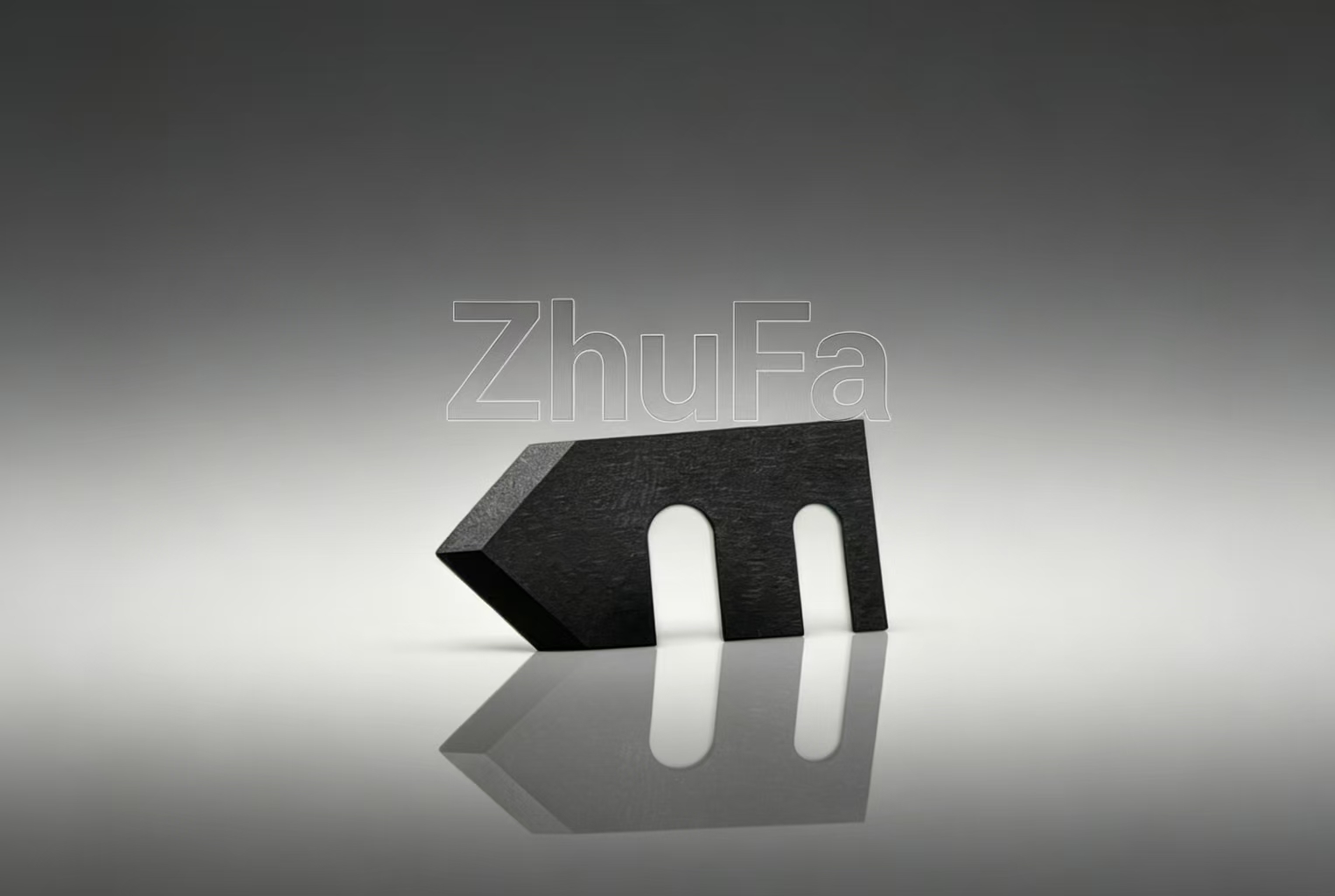

Special-shaped zirconia ceramic blades are made of high-purity nanoscale zirconia (ZrO2) powder, which is isostatically pressed and sintered at high temperature. For specific industrial cutting needs, it is customized through precision grinding process. Its hardness is second only to diamond, and it has extremely high wear resistance and chemical stability. It is an ideal choice to replace traditional stainless steel or tungsten steel blades.

2. Core advantages

Wear resistance: The service life is usually 50-100 times that of metal blades, greatly reducing the frequency of downtime for tool changes.
High hardness and high toughness: Through phase change toughening technology, it overcomes the brittle weakness of traditional ceramics and achieves high flexural strength.
Stable chemical properties: resistant to strong acids and alkalis, does not rust, and has excellent biocompatibility.
Non-conductive and non-magnetic: suitable for electronic processing, semiconductor testing and precision instrumentation environments, without electromagnetic interference.
High cut flatness: The ceramic blade has high sharpness and low surface friction coefficient, which results in low cutting resistance and can effectively prevent material from sticking.

3. Technical parameters

Indicator name	Typical value
Main material	Zirconia (ZrO2 Y2O3)
Density	6.0 g/cm³
Vickers hardness	≥ 1200HV
Bending strength	900-1100MPa
thermal expansion coefficient	10.5 × 10⁻⁶/K
Processing accuracy	±0.005mm

4. Application fields

Film and tape industry: precision slitting of high-viscosity tapes, lithium battery separators, and optical films.
Chemical fiber and textile: chemical fiber filament cutting, textile machinery parts, wear-resistant and anti-snagging.
Electronics and semiconductors: Flexible circuit board (FPC) cutting, component pin trimming.
Medical devices: surgical blades, skin cutting tools (because they do not release metal ions).
Food packaging: food-grade packaging bags are cut, anti-corrosion and clean.

5. Special-shaped customization capabilities

We support in-depth customization based on CAD drawings or samples provided by customers:

Shape customization: including circles, trapezoids, wavy shapes, hook shapes and various complex geometric configurations.
Edge treatment: single-sided edge, double-sided edge, fine grinding/mirror polishing.
Drilling/grooving: to meet the installation and fixing needs of different mechanical structures.
